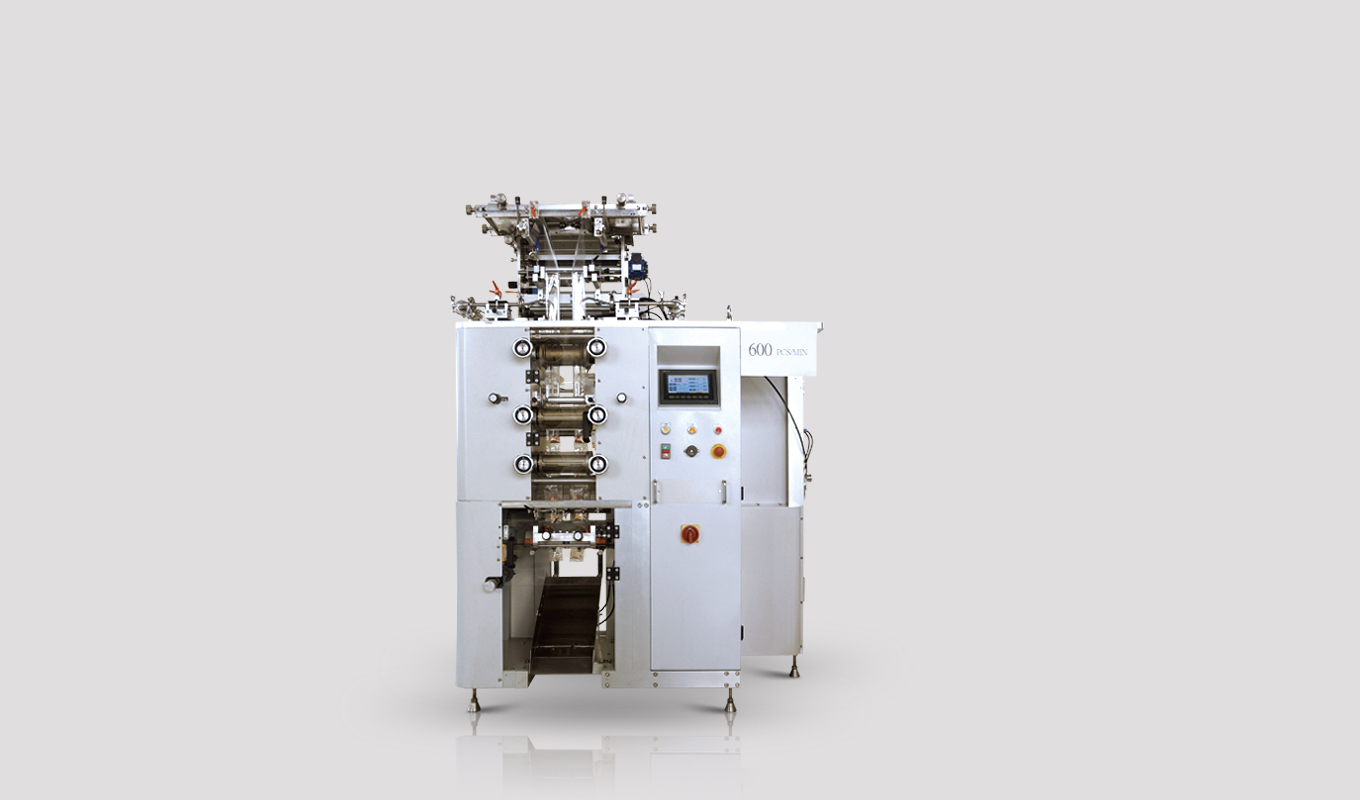

Bag Packing Machine Liquid/Paste

PT-100

Applications

Liquid, Paste

Features

  • Smart & Full Servo, PLC, HMI control operation system.
  • Adopting the HMI, easy operating, ease change packing size, no need to change forming mold.
  • Packaging length and speed are easy adjusted by numerical on HMI.
  • Continuous motion, high speed packing, photoelectric cell exact control.
  • It uses the flat or zigzag knife.
  • Product recipe function
  • Product counting are show on HMI



Specification

Model XYND
Packing Style Two Lanes, Three sides
Film Material NYLON, PET, OPP/PE, AL/PE, or other laminated film.
Packing Weight 3~120g
Packing Size W40mm~80mm,L60mm~180mm
Packing Speed 60~600 bags/min
Power 220V 3phase 50/60Hz
Machine Dimensions L1,800mm×W1,200mm×H2,500mm
Air 5~6 kg/cm2

Examples of package materials
